THE MOBILIFT CX - MANUALLY OPERATED PORTABLE WHEELCHAIR LIFT - Supply Only or Rental/Hire

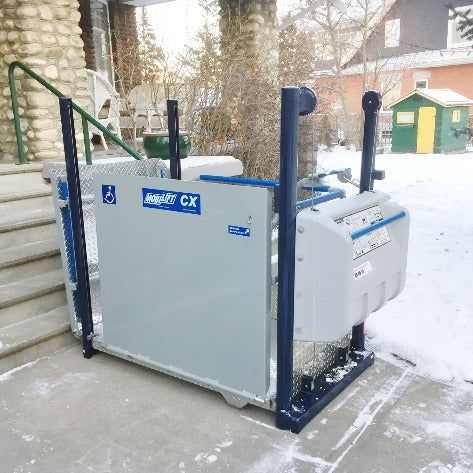

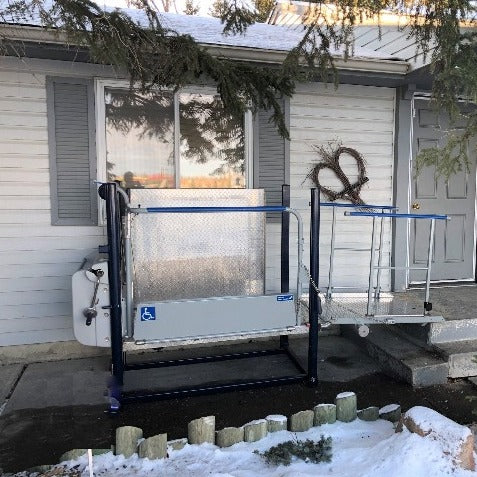

✔ Ideal for home entrances
✔ Perfect for stages and raised platforms
✔ Reliable in all weather conditions
✔ No permit, power supply, or construction needed

Roll-In-Place & Ready to Use

This unit is completely manual and attendant-operated, requiring no electrical power or batteries.

Silent operation

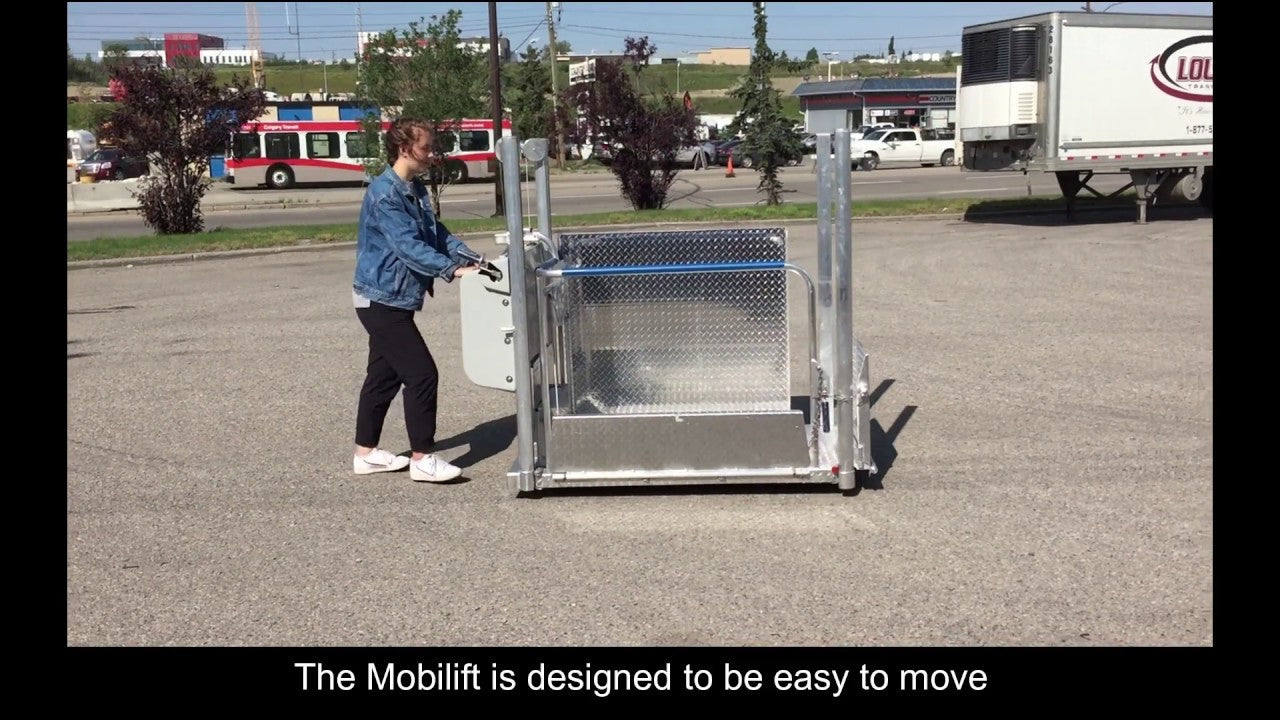

Rolls easily even across rough ground

• Requires only 5 lb push force on smooth flooring (similar to pushing a shopping trolley)

Long 20-year operating life

Minimal maintenance required

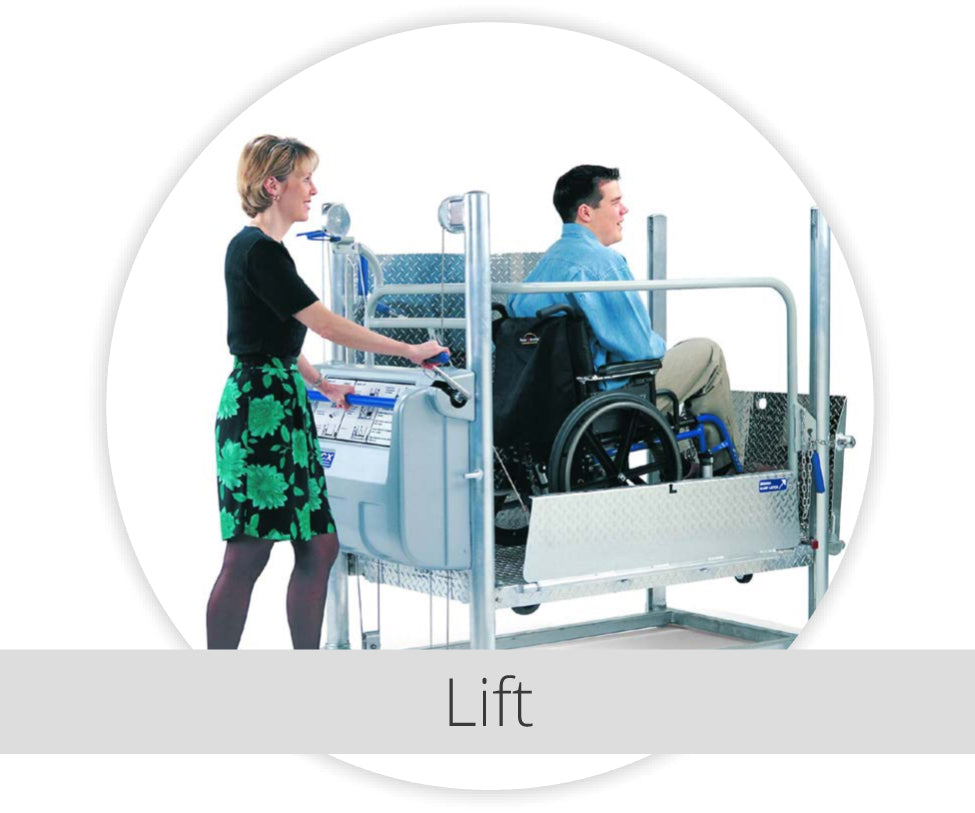

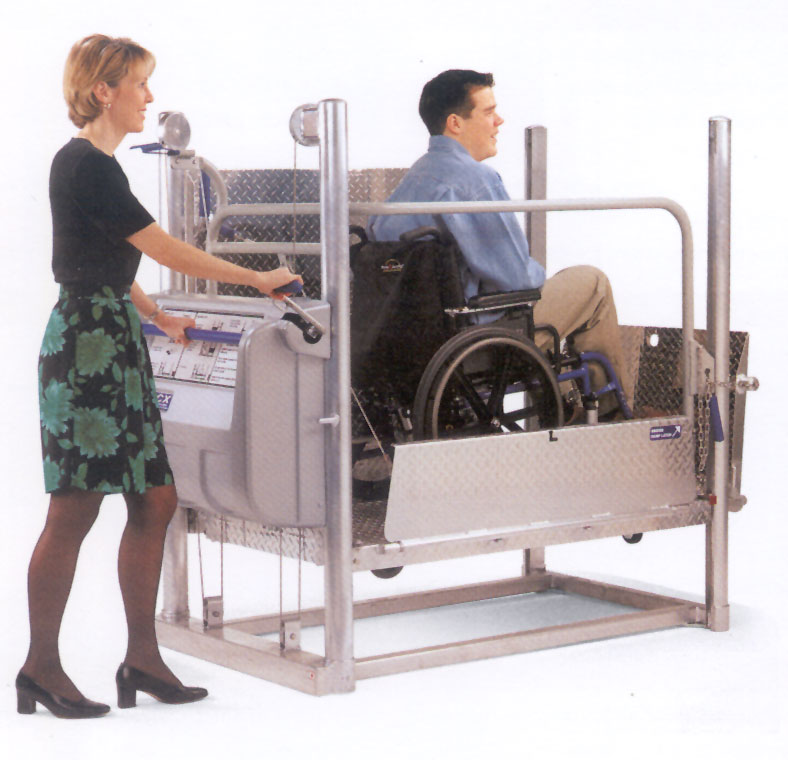

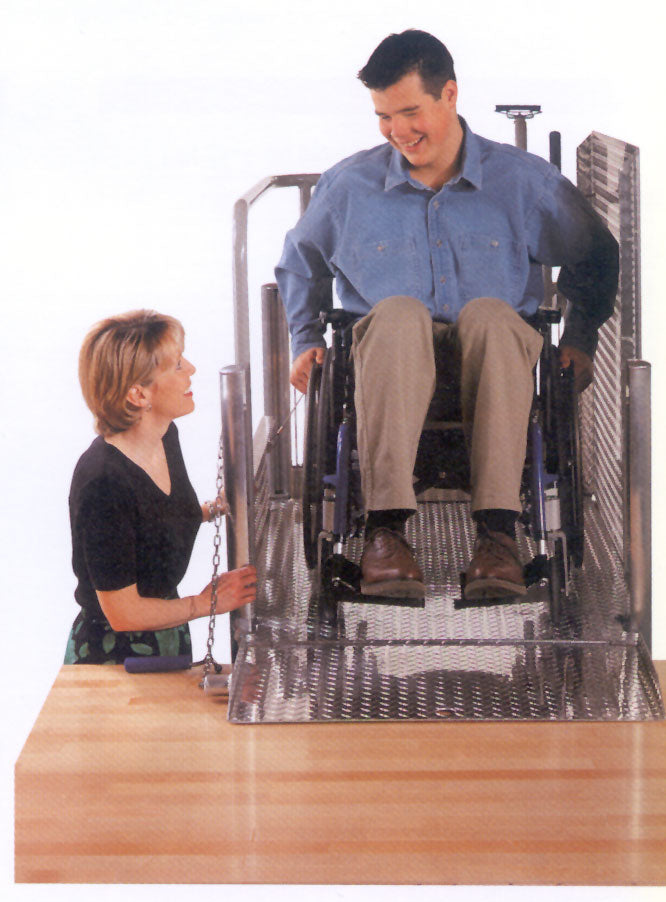

The Mobilift CX is a multipurpose, portable wheelchair lift that provides access to school stages, outdoor platforms and other elevated structures. Over 1000 units are used in schools, colleges, churches, auditoriums and historic buildings to provide disabled access. The lift is ideal where structural modifications are impractical, unattractive, too costly or prohibited for historic reasons.

Unlike other vertical platform lifts, the Mobilift CX is manually powered making it easy to use and highly portable. The absence of batteries, hydraulic and electric components make the lift extremely reliable and virtually maintenance free.

Mobilifts can be customised to accommodate unique situations – minimizing the chance that you will have to incur costly structural modifications to your facility. With its reasonable purchase price, the Mobilift is an economical way to make your location wheelchair accessible – instantly!

WEIGHTS & DIMENSIONS

The Mobilift CX is manufactured to exacting tolerances using aluminium and stainless steel. Critical components have been tested successful for extreme weather performance from -50° to +130°F to ensure low-cost, trouble free use. The lift conforms to stringent safety requirements with each lift factory load tested to 3000 lbs – five times the rated load.

Capacity 275KG

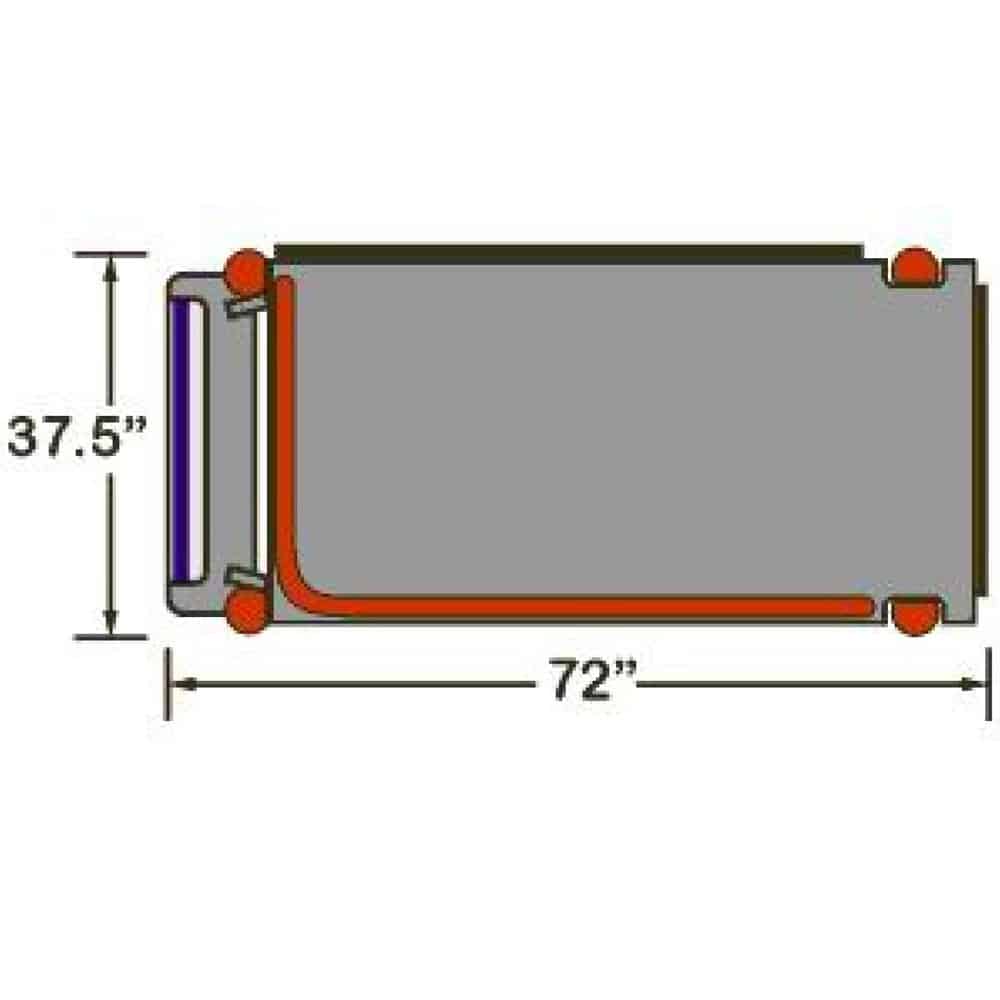

Platform size 860 x 1420

Vertical rise height 1520mm (1.5m) – 60”

Typical rise time from ground area 0mm to 1520mm (1.5m) user dependant – 20 seconds

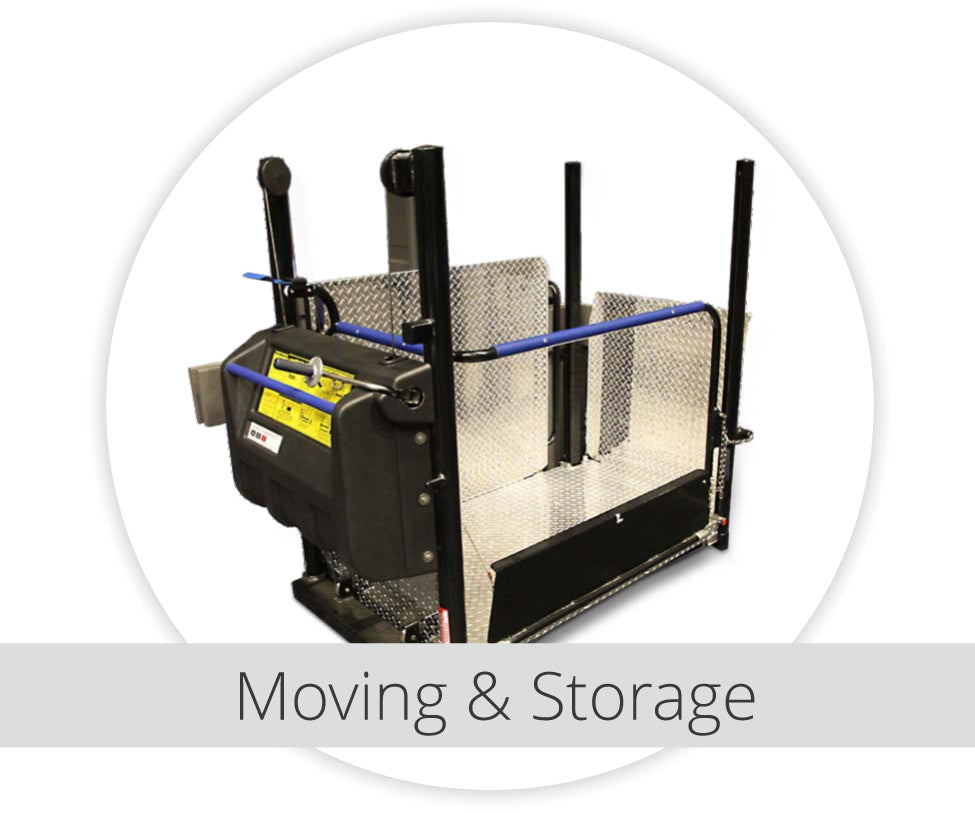

Fully mobile and easy to relocate and store when not required.

2-year full manufacture warranty

Due to being a portable device, multiple area(s) and locations, either same site or separate location sites.

Options Available:

Loading from right side
Stair bumper
Oversize platform
Narrow-doorway option
Left-hand side cranking
Mobile bridge ramp
Powder coated main structure

Choice of ramp lengths:
» 40” (1.0 m) contact us for cost
» 50” (1.27 m) contact us for cost
» 60” (1.52 m) contact us for cost

Cost provided below is for the supply of 1 x New Standard size Mobilift CX, includes delivery and set up/demonstration within 150 mile range of Widnes Cheshire. For outside of this area, please contact us by email or phone for a full quotation. Hire Options Available - please contact us for a quotation.
