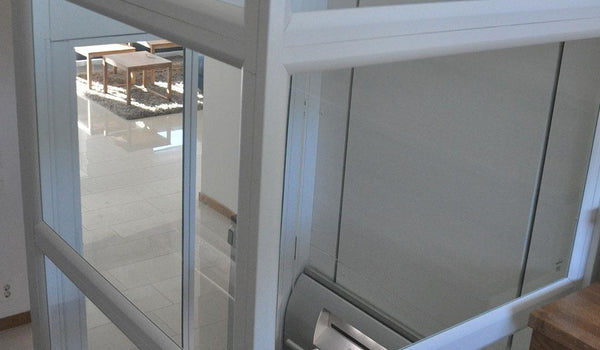

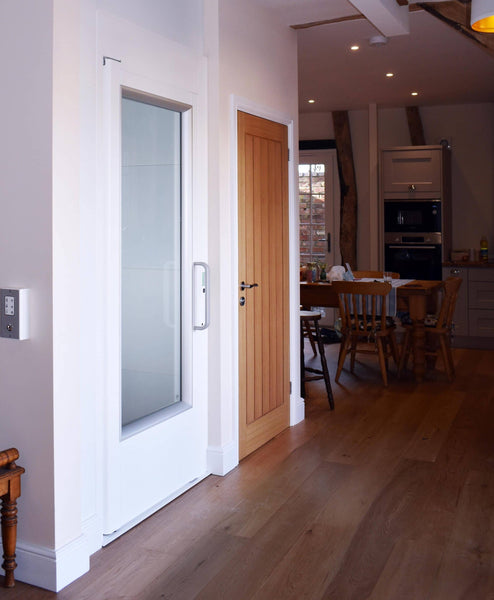

Gartec Aritco Homelift Access Through Floor Vertical Lift

Previous Product | Next Product
Product Description

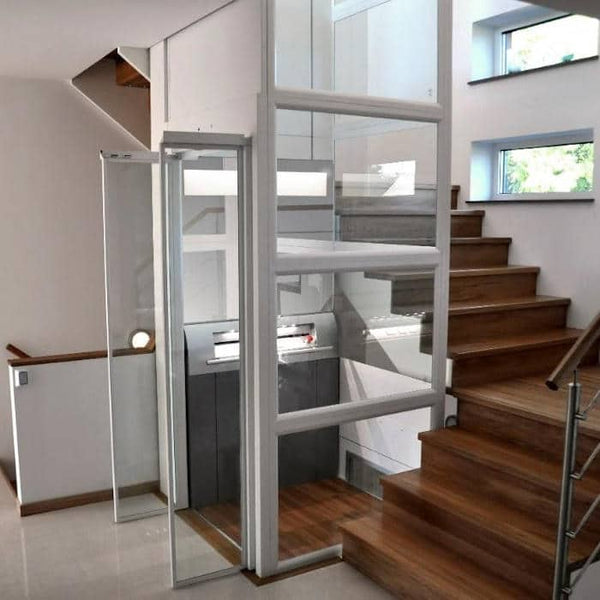

Our new and improved Aritco HomeLift Access has been developed from our popular 6000 model, one of the most flexible lift models that we offer, slightly larger than our 4000 model and therefore suitable for up to 6 people. This lift has 8 platform sizes and takes up to 500kg, ideal for bariatric and electric wheelchair use as well as travel with a carer. This particular lift can have doors on 3 sides, and is available with up to 6 stops (13m).

Contact ‘Aline Mobility’ the approved supplier and Installer of the full Gartec and Aritco Range within the UK, for a free site survey visit and no obligation, free estimate.

We can also provide approximate prices over the phone for the full installation of equipment, you can request a full colour brochure, or if you just need some advice on the various platform lifts available and where to start then we are here to help! For a definitive quote we would need to carry out a Free Full Site Survey for our engineers to assess layout, dimensions etc, and then we can provide a full quotation. Please contact us to arrange a mutually convenient appointment for our engineer to visit.

Specifications



Type of Lift

Passenger & light goods enclosed platform lift intended for use in residential environments

Compliance

European Machine directive 2006/42/EC
European standard EN 81-41

Drive System

Patented screw/nut system

Rated Speed

Max 0,15m/s

Travel Height

250mm – 13,000mm

No. Floors

2-6

Environment

Internal

Platform Controls

Hold to run, the destination button must be
kept pressed down during the whole ride

Control Voltage

24V

Motor

2.2kW

Power Supply

1-phase 230V 50 Hz 20 A type C MCB
3-phase 400V 50 Hz 20 A type C MCB

The Gartec Aritco HomeLift Access has been designed to be energy-efficient with low power usage and operating costs – using as much energy as a kettle or hairdryer. We are proud to say this lift is made up of up to 95% recyclable materials, and with much development, the goal is to become 100%.

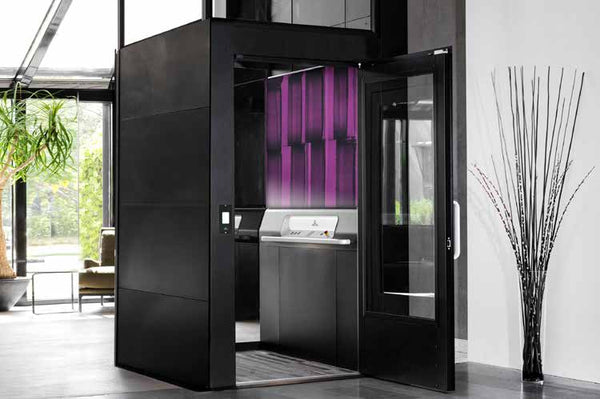

Having a home lift opens up possibilities for users, adds ease to lifestyles and can future-proof forever homes, that’s why the Gartec Aritco HomeLift Access comes with a wide range of finishes, configurations and options & additions to match any home. Using our patented screw and nut technology, the lift is driven via an energy efficient electric motor, all of which is integral, therefore no separate machine rooms or pump boxes are needed, making it a quiet and efficient option.

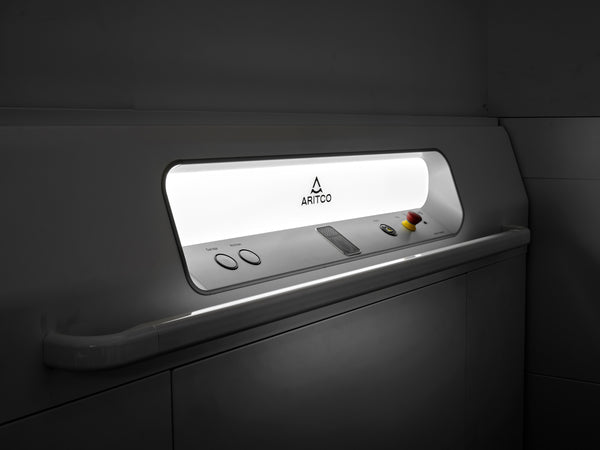

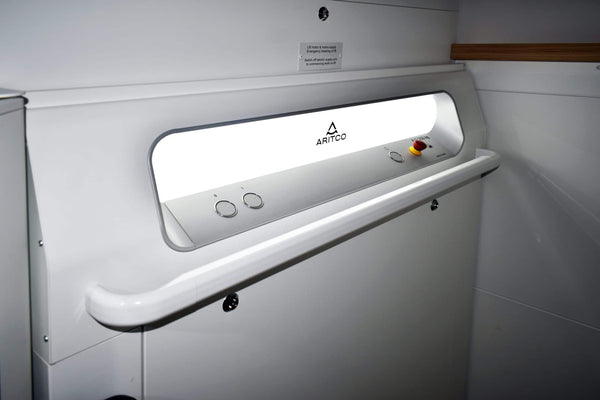

Furthermore, it’s been designed specifically for the home and therefore all features have been created to offer an easy user experience, with a fully lit control panel of buttons – all easy to use (and if ever in doubt, Aline Mobility are always here and happy to help). We also know how important safety is and that’s why our lifts include features such as; safety edges around the platform, locking doors, emergency battery lowering and a telephone or autodialler in the lift.

We have worked with Architects, Contractors and Homeowners for over 25 years and frequently our customers continue to go on to choose a home maintenance/servicing plan for extra peace of mind – we have fully trained and experienced 'Aline Mobility' service engineers who continue to maintain all our domestic and commercial lifts.
