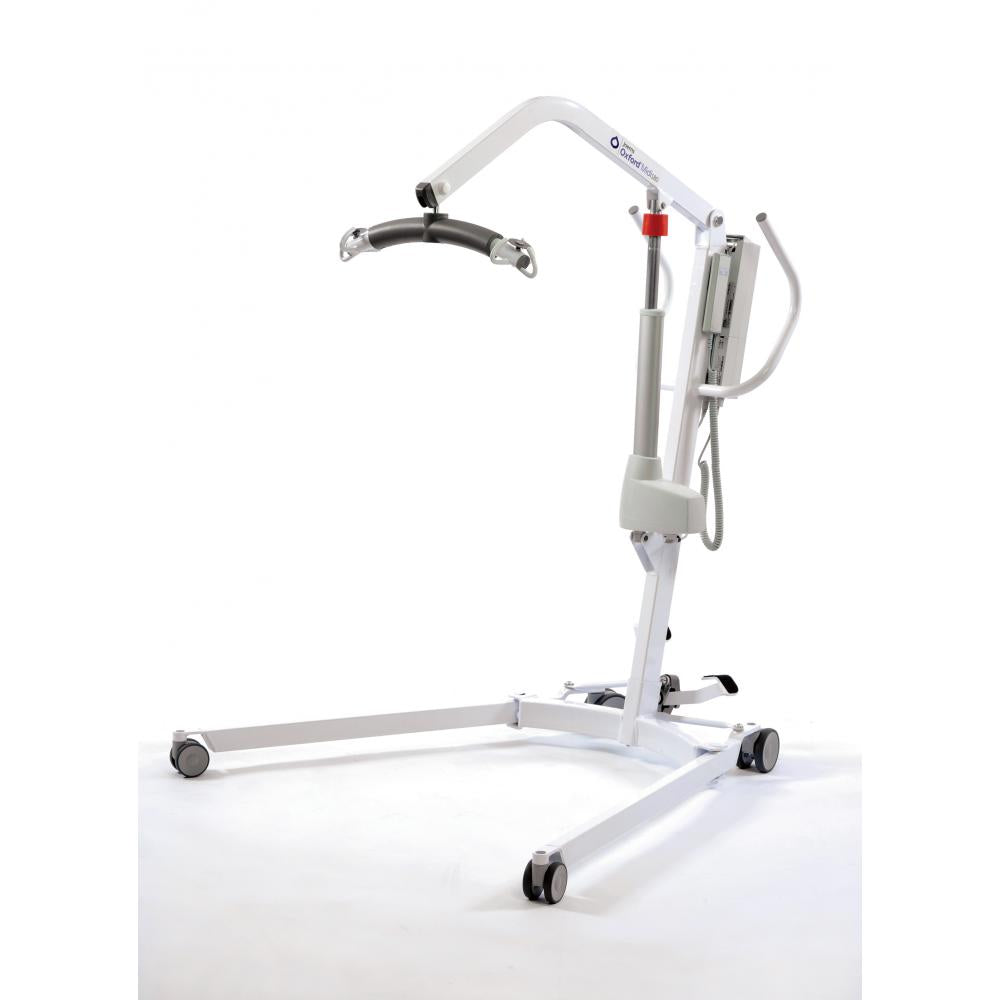

Oxford Maxi 180 Electric Mobile Hoist OXF-MAXIE-UK

Product Description
The new Oxford Midi 180 EM Electric hoist is the perfect solution for community and nursing homes. The Midi is suited in environments that offer little space that could limit manoeuvrability.

With a Safe Working Load (SWL) of 180 kg (27st), the Midi ensures hoisting patients won't be a problem.

What's Included:

Battery & Charger

Safe Working Load: 180 kg / 27 st
Length: 1225 mm
Maximum Overall Height: 1840 mm
Minimum Overall Height: 1240 mm
Maximum Spreader Bar Height: 1660 mm
Minimum Spreader Bar Height: 525 mm
Spreader Bar Height at Maximum Reach: 1060 mm
Spreader Bar Height at Maximum Height: 420 mm
Spreader Bar Height at Minimum Height: 440 mm
Maximum Reach: 565 mm
Turning Radius: 1150 mm
Legs Open External Width: 1060 mm
Legs Open Internal Width: 1000 mm
Legs Closed External Width: 600 mm
Legs Closed Internal Width: 540 mm
Overall Height of Legs: 100 mm
Ground Clearance: 25 mm
Front Twin Castors: 75 mm
Rear Braked Castors: 100 mm


Total: 32 kg
Mast and Boom Assembly: 20.5 kg
Base Assembly: 11 kg
