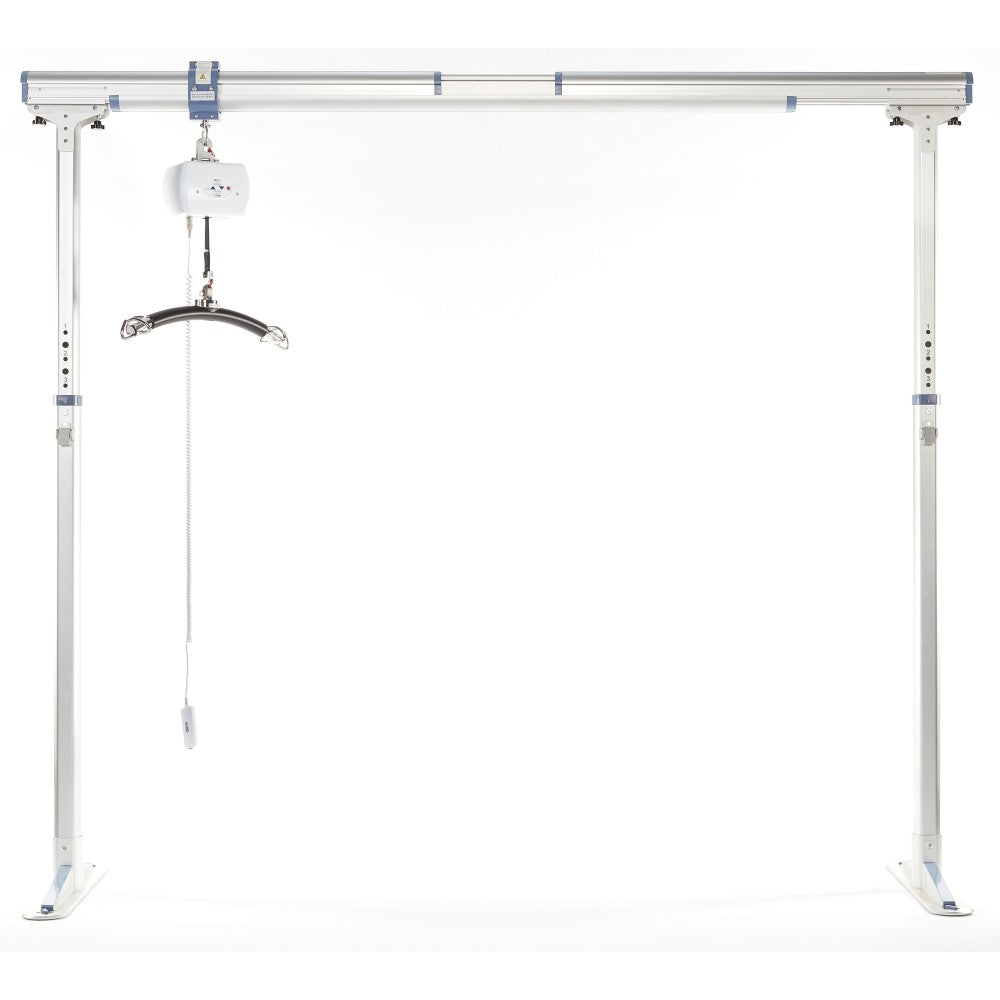

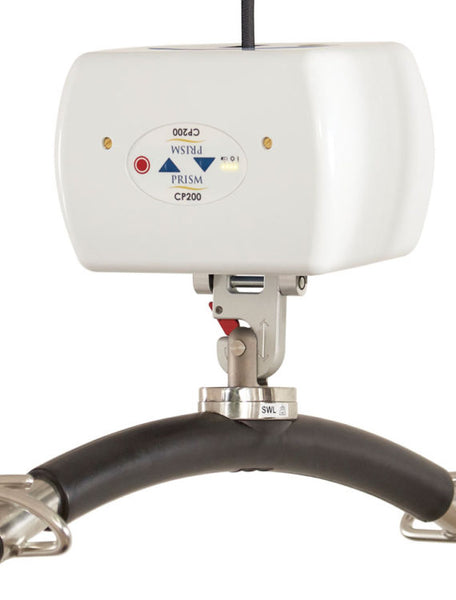

Freeway Freestanding Prism CP200 Portable Gantry Track System Complete With Drive Hoist With Standard Carry Bar

The Prism CP200 Portable Track Hoist offers exceptional versatility and cost savings when compared to multiple fixed installations.

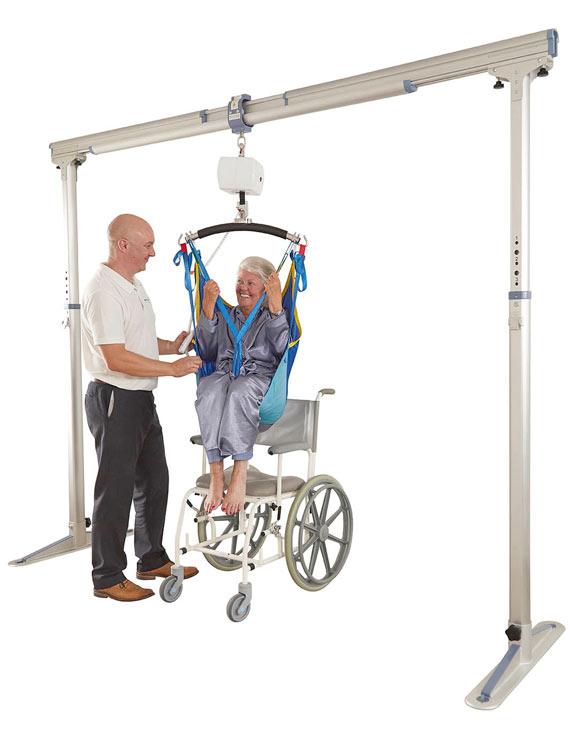

It can be quickly moved between multiple fixed ceiling track systems and used in conjunction with gantry systems such as the Prism FSG200 or Easy-Fit.

The ‘QRS’ quick release systems on both the top and bottom of the unit allows it to be swapped between fixed and portable applications in seconds, simply by altering the orientation of the unit and which QRS hook the carry bar is fitted to.

The CP200 is compact and quiet in use, offering a soft start/stop feature for user comfort and provides up to 60 lifts on a single charge. With a maximum rated load of 200 kilos, which is approximately 31.5 stones or 440 pounds.

The CP200 is suitable for hospitals, care homes and home care environments.

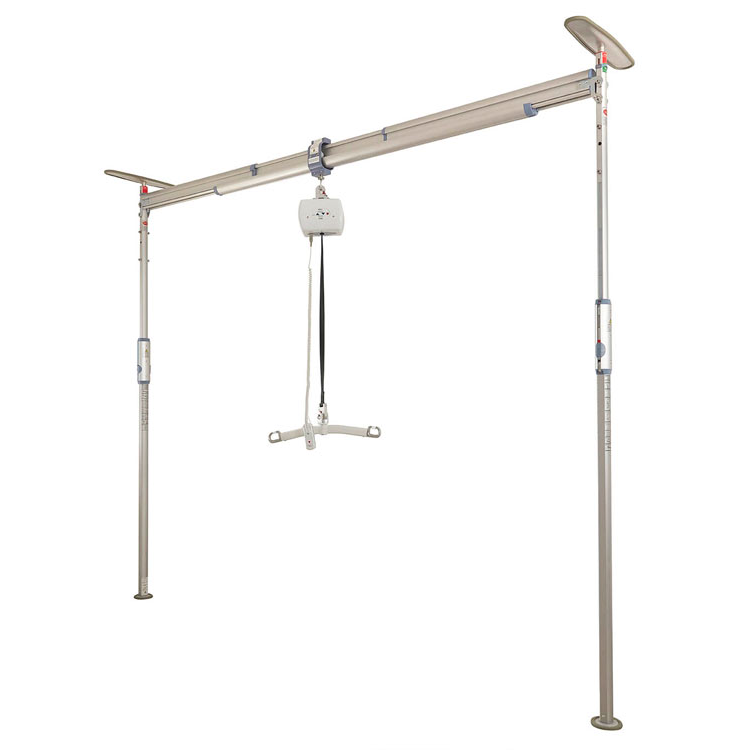

Supplied as a money saving set, the Pressure Fit Gantry System combined with the Prism CP200 Portable Gantry Hoist offers a highly portable, versatile, and reliable hoisting solution, perfect for scenarios where a fixed ceiling track is not an option. Constructed from high-strength aluminium, the system is both lightweight and robust, ensuring durability and ease of transport. Its intuitive design allows for easy, tool-free assembly by one person, making it ideal for confined spaces where other gantry systems may not fit. The unique floor-to-ceiling setup eliminates the need for additional fixings or costly building modifications, offering a secure and adjustable fit between the floor and ceiling.

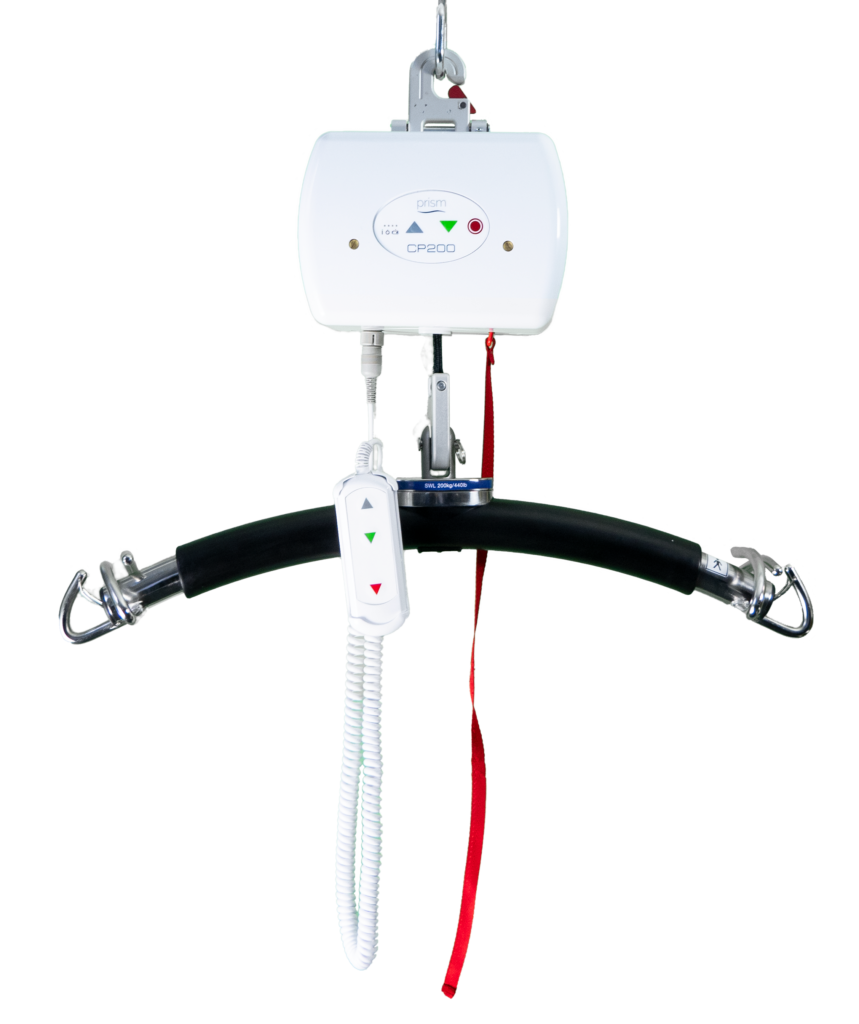

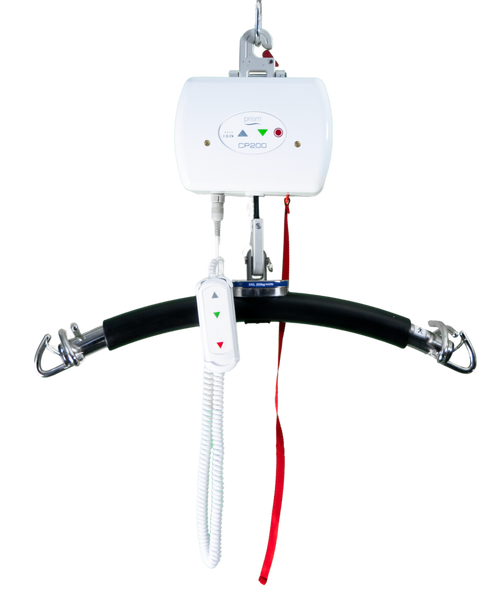

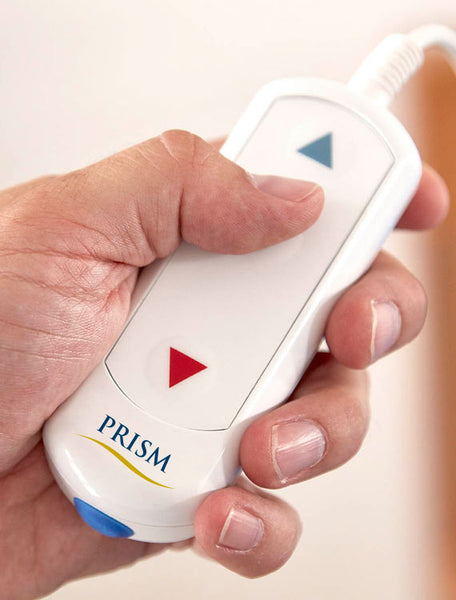

The Prism CP200 Portable Gantry Hoist, weighing only 4.5kg without the carry bar, is compact and lightweight, making it easy to handle. It operates quietly with a soft start/stop mechanism and can provide up to 60 lifts on a single charge. The hoist supports a lifting range of up to 210cm, ensuring flexibility for various transfer scenarios. Safety features include a wired electric handset for up, down, and emergency lowering controls, an automatic power-off function after 30 seconds of inactivity, and LED indicators for battery and error status, ensuring both user and caregiver are safe and informed during operation.

This cost-effective gantry system is suitable for both temporary and permanent installations, eliminating the need for structural alterations. By avoiding the need for multiple fixed installations and expensive building modifications, it offers significant cost savings. The Pressure Fit Gantry System combined with the CP200 enhances comfort and security for both caregivers and individuals being lifted, providing a dignified transfer experience while offering an economical choice for frequent transfers in home care and other settings.

Max Safe Working Load: 200kg
Hoist Case: Non Flammable ABS Plastic
Length: 208mm
Width: 177mm
Height: 149mm
Weight: 4.5kg (Hoist only)
Rail Transfer: Manual
Hoisting Range: Up to 2100mm
Lifting Speed (unloaded): 35mm/s
Lifting Speed (100 kg loaded): 25mm/s
Charger Input: 100- 240V
Charger Output: 24V – 1.33 amps
Emergency Stop: Electric
Hand Control: Electric 3 (Button)
Batteries: 2 x 12V – 3.3Ah Nimh
In Track Charging: Not Available
Removable from Track: Yes
Duty Cycle: 15% use, 85% rest
