Prism Free Standing Gantry - 1102PH-FSG200

Product Description

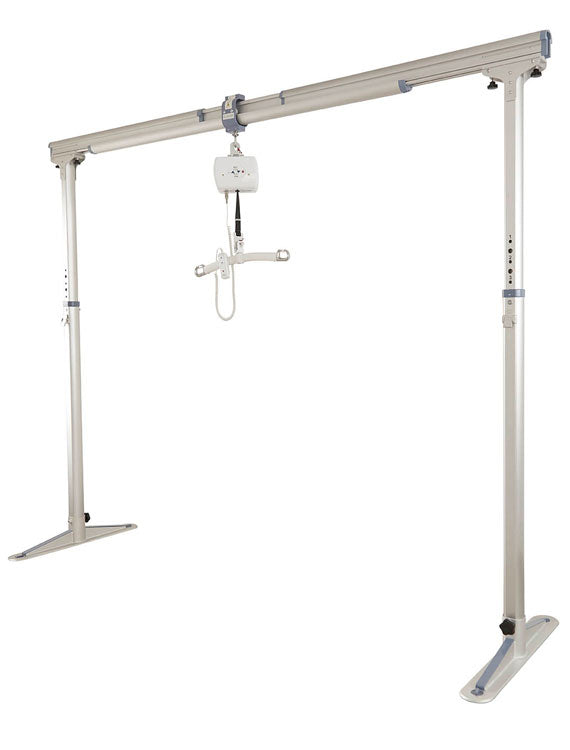

The Prism FSG200 Free Standing Gantry system is designed to provide a safe, stable hoist track in places where a fixed ceiling track is not available or portable solution is required.

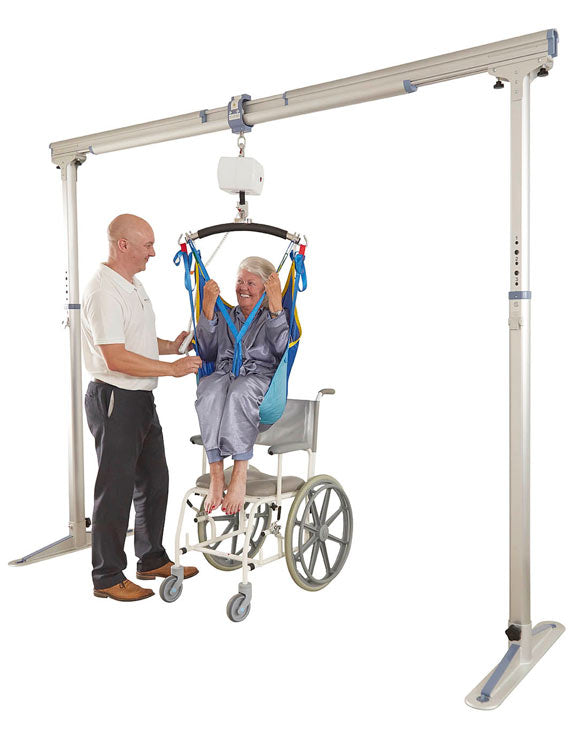

When used in conjunction with a portable track hoist, such as the Prism CP200, the system is perfect for home care, allowing users to extend the time they remain in their own home by years.

It’s a cost effective solution that is easy to transport and simple to erect in minutes by either 1 or 2 people without the need for tools.

The FSG200 has a safe working load of 200kg, which is approximately 311/2 stones or 440 pounds, and caters for the requirements of both the patient and caregiver, providing a safe and dignified experience for both.

Max Safe Working Load: 200kg
Minimum Useable Track Length: 1900mm
Maximum Useable Track Length: 2825mm
Minimum Unit Width: 2445mm
Minimum Unit Width: 3387mm
Minimum Ceiling Height: 2141mm
Maximum Gantry Height: 2508mm
Foot length: 870mm
Total Weight (Boxed): 47.5kg
Unit weight (inc Trolley): 44kg
Track / Trolley Weight: 16kg
Upright weight (x2): 10.5kg each
Feet weight (x2): 3.5kg each
Height adjustments: 75mm

Price on application
