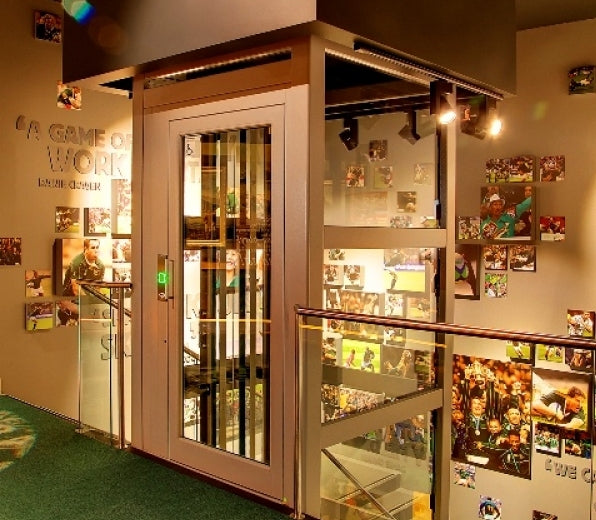

Vimec Eco Homelift

Technology

Low energy consumption

Noiseless, class-leading

Carrying capacity of 400 kg, without counterweight

MRL Machine RoomLess

Safety

In case of power failure, back to the floor automatically

Infrared barriers

Communication device inside the cabin

Ecologic

Without hydraulic oil

Manufacturing process with waste materials for recycling

Many personalised options to suit all tastes. Suitable for both indoor and

outdoor installation.

Quick to install with no invasive building works

Customised Design

Vimec’s focus on styling is expressed through the shapes and materials chosen to express wellbeing attention to details, and a love of our work In Vimec products, quality means substance: reliability, quiet operation, user-friendly technology

The ECOVimec lift fits into any domestic context with discretion and elegance. It is a 100% Italian product, and every installation clearly reflects its membership of the world-famous Italian design and styling

tradition.

Eco Vimec offers you many customisation options, starting from the walls of the cabin, available in different finishings and colours, through the platforms, in fine materials in a variety of shades. A wide choice of structure finishings are available to provide the best match with the surrounding colours and environment.

 ECOVimec is a unique elevator:

• Environmentally friendly-electric lift compliant to the Machinery Directive

42/2006

• In the event of a power failure automatically returning to the floor
• Without counterweight
• MRL Machine RoomLess

 Capacity up to 400 kg

Maximum travel 5 stops (about 14,6m)

Speed 0,15 m/sec.

• Safety stop in the pit with electric monitoring and visual flashing alarm with manual reset
• Mechanical safety lock in the headroom with surveillance (electric lock)
• O.S.G. Over Speed Governor: a speed limiter
• Loose control drive belts with electric monitoring and shutdown
• O.L.C. Over Load Control: Lock and load control equipment
• In case of power failure, electric emergency operation (Battery 36-Volt)
• Easy maintenance directly inside the cabin by moving the control panel

GENERAL FEATURES

• Drive system and at-the-ground control
• Belt drive
• Drive motor 1.5 kW three-phase 220 V 50 Hz
• Electric Traction
• Soft start/stop system
• Voltage supply 24 V DC
• Fire alarm return to safe floor
• Mechanical key enabling on-board keypad
• No. 6 accesses maximum
• No. 2 accesses to the floor maximum
• Electrical Safety Locks
• On floor controls with “Simple touch”
• 120 mm pit - 140 mm with supporting structure
• Technical Dimensions (engine, belts) 310 mm
• Headroom minimum standard 2450 mm
• Headroom with cabin door minimum 2600 mm
• Platform sizes available:
• 2 Standard: 1400 x 1100-1250 x 1000
• Special sizes available upon request

• Free Site Surveys Available by our Qualified Lift and Hoist Engineers (Not Salesmen). We can also provide approximate prices over the phone for the full installation of equipment, you can request a full colour brochure, or for a definitive quote we would need to carry out a Free full site survey for our engineers to assess layout, dimensions etc, and then we can provide a full quotation. Please contact us to arrange a mutually convenient appointment for our engineer to visit.
