Joerns Oxford Dipper Pool hoist Fixing Socket C for Bathing Hoist OP10016

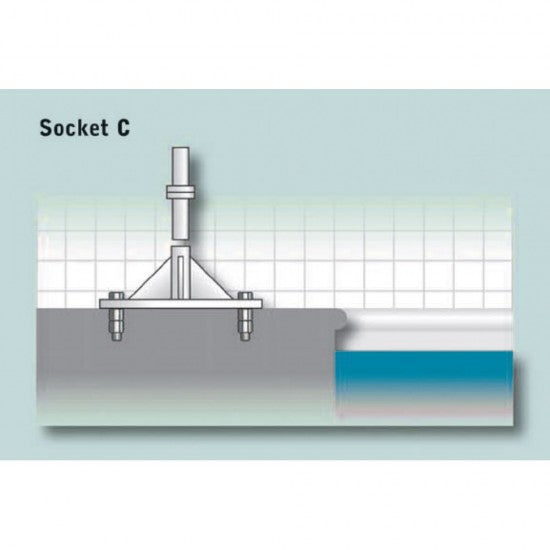

This socket is surface mounted and stands proud of the floor by 150 mm. It is used mainly where there is insufficient depth of concrete for 'A' or 'B' sockets. The 'C' socket plate is drilled for four 15 mm rawplug type expanding bolts. The recommended minimum depth of concrete for the 'C' socket is 150 mm. The 'C' socket adds 150 mm to the height of the mast.  This alters the maximum height of the bottom of the chair to 1039 mm and the lowest position of the chair bottom below floor level to 764 mm. An illustration can be found below.

For maximum flexibility when installing, the Oxford Dipper is available with 3 floor fixing options.

This ensures the Dipper is suitable for use in any location.

The Oxford Dipper must have a socket fixing in the floor for it to work. If you do not already have this fitting, please see options below and choose the appropriate socket for your pool. The Dipper can be fitted to both indoor and outdoor swimming pools and thanks to its choice of fixings can be fitted to all pool types. It can be even be fitted to sailing jetties and pontoons, as well as fixing into concrete yards & dinghy parks.

Key features

• Socket A is for use with solid concrete base
• Socket B is for tiled floors and next to a water channel, minimum concrete thickness of 205mm (8 inches)
• Socket C with a base plate is for use on solid concrete floors
