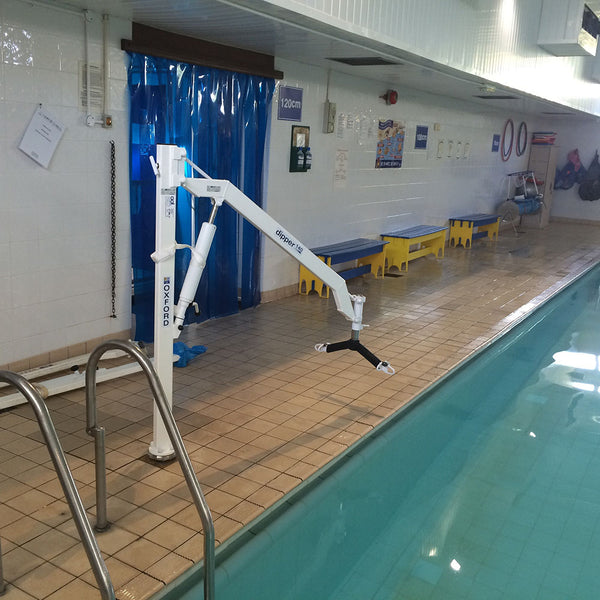

Joerns Oxford Dipper Battery Swimming Pool hoist With Spreader Bar OP10014

 Oxford Dipper Pool hoist with Spreader Bar

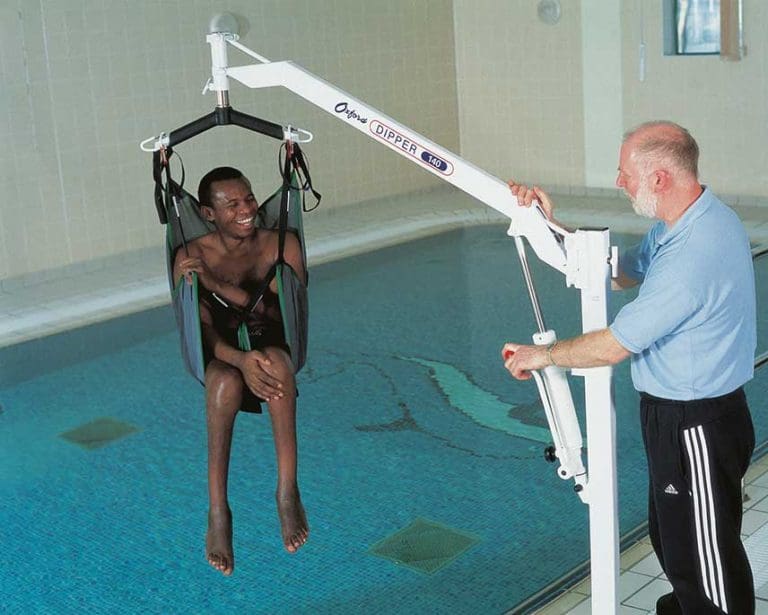

The spreader bar version is designed for service users who use a sling with loops  to access the pool etc.  The service user will access the pool via a wheelchair and wheel up to the spreader bar.  The support person will fit the sling and once ready, raise the dipper by pumping the arm to a height that will enable the sling to be attached and thus raise the service user off the wheelchair. The user will then be suspended by the support sling this person can then be safely lowered into the pool by unscrewing the black dipper release valve into the pool.

The spreader bar and sling option is mainly for users that require more support than the Ranger chair can provide. Suitable slings to use for pool transfers from the Oxford range: Quickfit sling, Full Back sling, Quickfit Deluxe sling, Longseat sling. These have to be the net versions.

The Ranger Commode and Transporter option is a chair component that is mounted on sturdy castors and provides a comfortable means of transport to the pool side. When the Ranger reaches the hoist, the seat can be lifted from its wheeled base, repositioned over the water and then gently lowered into the water.

Price below is for supply only of Oxford Dipper Pool Hoist  - if you would like Installation then please contact us for a full quote.

To install a Dipper pool lift you will need to allow for the cost of a socket to be fitted. There are three standard fittings, A, B or C sockets.

Oxford Dipper A Socket

Oxford Dipper B Socket

Oxford Dipper C Socket

The choice of socket is dependent on the type, layout and construction of pool deck. See the user instruction manual pdf for further details.

The base socket is subjected to high loadings during use so it is essential that the immediate area surrounding the socket is a good sound concrete construction.

It is the customers responsibility to ensure that the pool deck is of sufficient strength and depth to accommodate the socket and that there are no services which could be damaged by drilling. The costs for installing the socket are not included in the prices below, please call us on 0151 423 3738 or email us on office@alinemobility.co.uk to get an idea of likely installation costs in your area.

The Oxford Dipper Lift is suitable for the following categories of lift within the working parameters of the Dipper specified in the technical specifications within the user manual.

Category A – Wheelchair
Category C – Bath
Category D – Toilet/Shower Chair
Category E – Floor
Category F – 90 Degree Rotation

The Oxford Dipper Lift is suitable for patients in the SITTING, SITTING/RECUMBENT and RECUMBENT positions. For further information and an idea on price please call us on 0151 423 3738 or e-mail office@alinemobility.co.uk stating the product information that you require.

Product Specifications

• Suitable for use by most pools including outdoor pools
• Unique design assures full integration with pool or quayside environments
• Highly functional and easy to use
• A proven, extremely reliable and safe method of gaining access to the water
• Price covers delivery only
• Choice fixing options (sold separately in this category - a Socket Fixing is required)
• Installation quotations available on request (excluding drilling of socket location)
• Supplied with full 1 year manufacturer's warranty for peace of mind
• Boom length: 1498mm (59 inches)
• Height (socket A & B, boom lowered): 1422mm (56 inches)
• Height (socket A & B, boom full elevation): 2108mm (83 inches)
• Base of seat above floor level (socket A & B): 889mm (35 inches)
• Base of seat below floor level (socket A & B): 914mm (36 inches)
• Height (socket C, boom lowered): 1572mm (62 inches)
• Height (socket C, boom full elevation): 2258mm (89 inches)
• Base of seat above floor level (socket C): 1039mm (41 inches)
• Base of seat below floor level (socket C): 764mm (30 inches)
• Weight of mast assembly: 15.4 kgs (34 lbs)
• Weight of boom assembly: 10.4 kgs (23 lbs)
• Weight of chair support tube: 3.6 kgs (8 lbs)
• Weight of spreader bar assembly: 1.7 kgs (4 lbs)
• Maximum user weight: 140 kgs (22 stone)

Price on application
