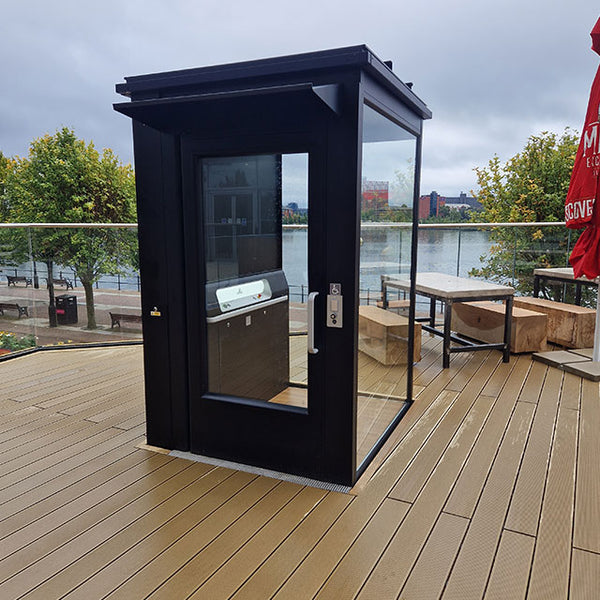

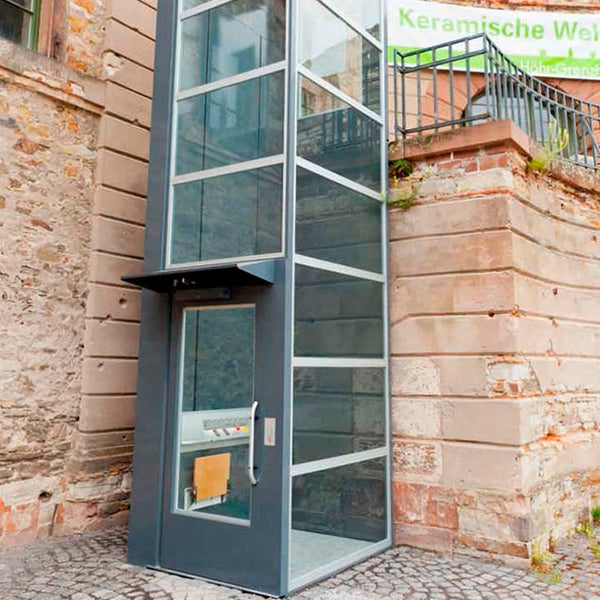

Gartec Aritco PublicLift Access Outdoor Option Commercial Platform Lift

Previous Product | Next Product

Product Description

The Aritco PublicLift Access Outdoor Option is based on our most popular model, the PublicLift Access. However, it boasts the additional features a weatherproof outdoor lift needs, including chromated guides, an external roof and door canopies. This is most frequently used where internal space is at a premium.

Contact ‘Aline Mobility’ the approved supplier and Installer of the full Gartec/Aritco Range within the UK, for a free site survey visit and no obligation, free estimate.

We can also provide approximate prices over the phone for the full installation of equipment, you can request a full colour brochure, or if you just need some advice on the various platform lifts available and where to start then we are here to help! For a definitive quote we would need to carry out a Free Full Site Survey for our engineers to assess layout, dimensions etc, and then we can provide a full quotation. Please contact us to arrange a mutually convenient appointment for our engineer to visit

SPECIFICATIONS

Type of Lift	External platform lift intended for use in public & commercial environments
Compliance	European Machine directive 2006/42/EC European standard EN 81-41
Drive System	Patented screw/nut system with emergency battery backup
Rated Speed	Max 0,15m/s
Travel Height	250mm – 10,000mm
No. Floors	2-6 (depending on wind loading)
No. Doors per floor	Max. 2 doors per floor
Pit / Ramp	50 mm recess or ramp (pit and threshold drain may be required)
Entry	One, two or three sides
Top Enclosure Height	Minimum 2400mm. no head fixing required

Platform Controls	Hold to run, the destination button must be kept pressed down during the whole journey
Landing Controls	One touch call, single press operation
Environment	Working temperature range -5 degrees to 40 degrees. Windloads up to 25m/s when fixed to a supporting wall or structure. Windloads up to 10m/s when supported by Gartec supplied bracket.
Emergency Lowering	Battery operated emergency lowering
Control Voltage	24V
Motor	2.2kW (3kW for higher speed)
Door Locking system	Electrically operated deadlock
Power supply	1-phase 230V 50 Hz 20 A type C MCB 3-phase 400V 50 Hz 20 A type C MCB
Rated Load	410 or 500 kg (500kg is 3 phase only)
Enclosure	Solid panels or glass (for windloads 10 m/s only)
Doors	GL Full height door as standard /E160 Fire Doors (optional)

Our external platform lift, the Aritco PublicLift Access Outdoor option is ideal for outdoor environments with weather-resistant features. Aline Mobility servicing packages ensure your lift condition – with packages to suit all budgets and requirements. Our Aline Mobility engineers are on hand 24/7 for peace of mind.

The Aritco PublicLift Access Outdoor Option (external passenger platform lift) is ideal for use as a simple access lift between external floors. This can also be upgraded to the goods version, offering higher lifting capacity and the benefit of using the lift for light goods. The lift uses a modular structure to reduce delivery and installation time, needing only a small load bearing footprint and no major building works on site.

The Aritco PublicLift Access Outdoor Option lift is completely contained within the shaft, and operated using our patented nut & screw technology which eliminates the need for structural changes or major building works. The lift doesn’t require a machine room or pump box housing. Operation inside is by continuous pressure, and outside using a single touch button to call the lift to the floor.

The external lift position will need to be assessed for wind forces to ensure that it is a safe placement. If it is a high wind area then a supporting wall could be utilised. All our commercial lifts are supplied with a 12-month warranty as standard, and we offer a range of platform lift servicing packages, which can be tailored to suit your specific requirements.
