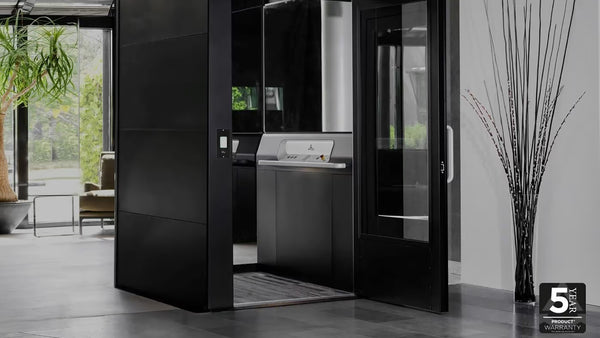

Gartec Aritco PublicLift Commercial Access Lift

Previous Product | Next Product

Product Description

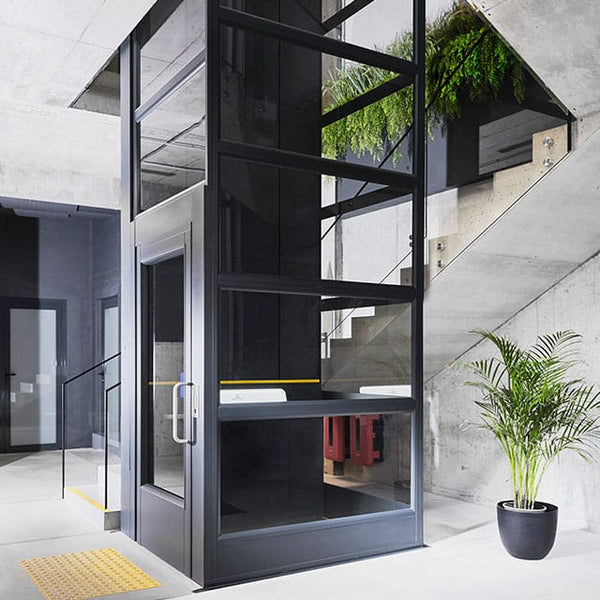

The most versatile platform lift on the market, the Aritco PublicLift Access is a simple, cost effective solution for access in almost any building. The Gartec Aritco PublicLift Access range uses our screw & nut system – quiet, efficient and safe. Choose from a huge selection of finishes and colours

Contact ‘Aline Mobility’ the approved supplier and Installer of the full Gartec/Aritco Range within the UK, for a free site survey visit and no obligation, free estimate.

We can also provide approximate prices over the phone for the full installation of equipment, you can request a full colour brochure, or if you just need some advice on the various platform lifts available and where to start then we are here to help! For a definitive quote we would need to carry out a Free Full Site Survey for our engineers to assess layout, dimensions etc, and then we can provide a full quotation. Please contact us to arrange a mutually convenient appointment for our engineer to visit.

The Aritco PublicLift Access is our most popular lift model and has the safety features, low energy consumption and customisations you expect from a commercial lift. Larger platform sizes can be fully Part M and Equality Act Compliant (please speak to a member of our team) and can be installed in less than one week.

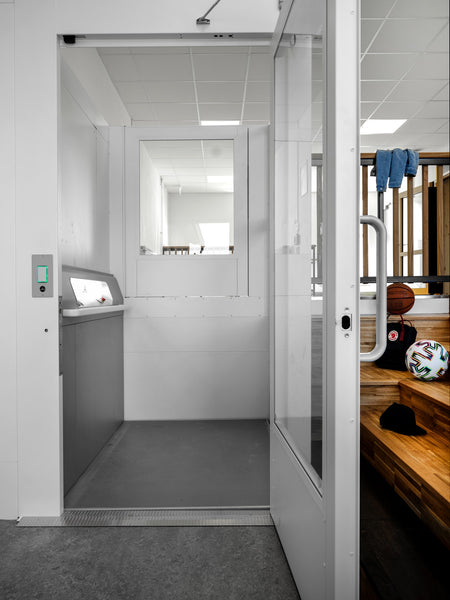

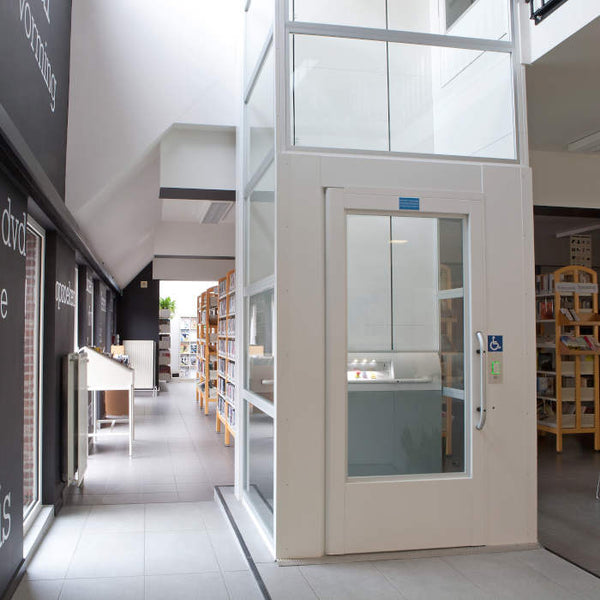

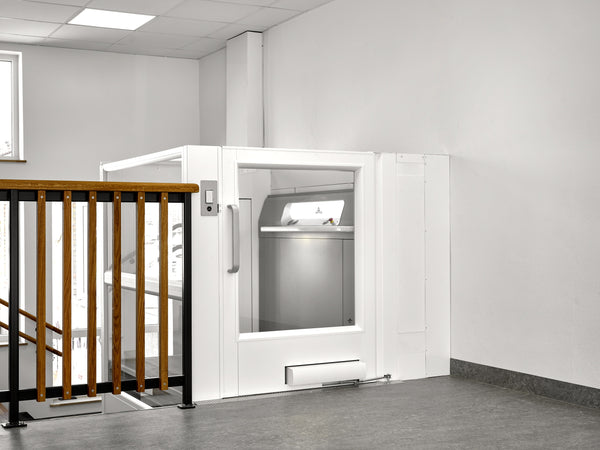

These platform lifts are our most frequently installed models for schools, office blocks, hospitals, care homes and retail due to size, weight capacity and compliance. For external installations, see our external platform lifts.

Our patented screw and nut drive system offers a safe, quiet and environmentally friendly solution. Completely self-contained, the Aritco PublicLift Access eliminates the need for a separate machine room or pump box housing, also ideal for restricted or listed buildings.

With 'Aline Mobility' specialist engineers, a typical Aritco PublicLift Access installation takes just 3 days. The lift uses a modular, free standing frame structure to reduce delivery and installation time, needing only a load bearing footprint and no major building works on site.

All our lifts are supplied with a 12-month warranty as standard, and we offer a range of platform lift servicing options which can be tailored to suit your specific requirements.

Specification

Type of Lift	Enclosed platform lift intended for use in public & commercial environments
Compliance	European Machine directive 2006/42/EC European standard EN 81-41
Drive System	Patented screw/nut system
Rated Speed	Max 0,15m/s
Travel Height	250mm – 13,000mm
No. Floors	2-6
No. Doors per floor	Max. 2 doors per floor
Pit / Ramp	50 mm (no pit is required when there is a ramp)
Entry	One, two or three sides
No. of doors	Max. 2 per stop
Enclosure Top Height	Minimum 2240 mm. Maximum 4000 mm (above top floor served) (1100-1600 mm with half height door)

Platform Controls	Hold to run, the destination button must be kept pressed down during the whole journey
Landing Controls	One touch call, single press operation
Environment	Internal
Emergency Lowering	Battery operated emergency lowering
Control Voltage	24V
Motor	2.2kW
Door Locking system	Electrically operated deadlock
Power supply	1-phase 230V 50 Hz 20 A type C MCB 3-phase 400V 50 Hz 20 A type C MCB
Rated Load	250, 410 or 500 kg (500kg is 3 phase only) (dependent on platform size)
Enclosure	Solid panels or glass (optional)
Doors	GL Full height door as standard EI60 fire doors (optional), half height available (under 3000mm travel only)

OPTIONS

Lift Colours	Can be painted in any RAL colour from the RAL K7 classic chart (Except for pearl and fluorescent colours). The standard colors are Traffic white RAL 9016, black RAL 9005 and grey RAL 7016.
Glass Material	Clear Glass Tinted Glass
Floor Material	Dark Grey, Vinyl Aged Oak, Vinyl Bolson Graphic Bolson Sisal Plain Sand
